Schuco ASS80 Bi-Folding Door

A unique folding system achieved with the Schuco ASS 80 Aluminium Bi-Folding door

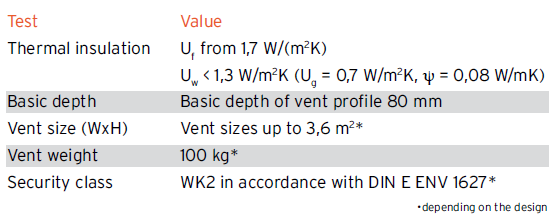

The Schuco ASS 80 offers a unique folding door system which achieves a Uf value of down to 1.7 W/m²K and a Uw value <1.3 W/m²K, which fulfills the requirements of EnEV 2009 with ease.

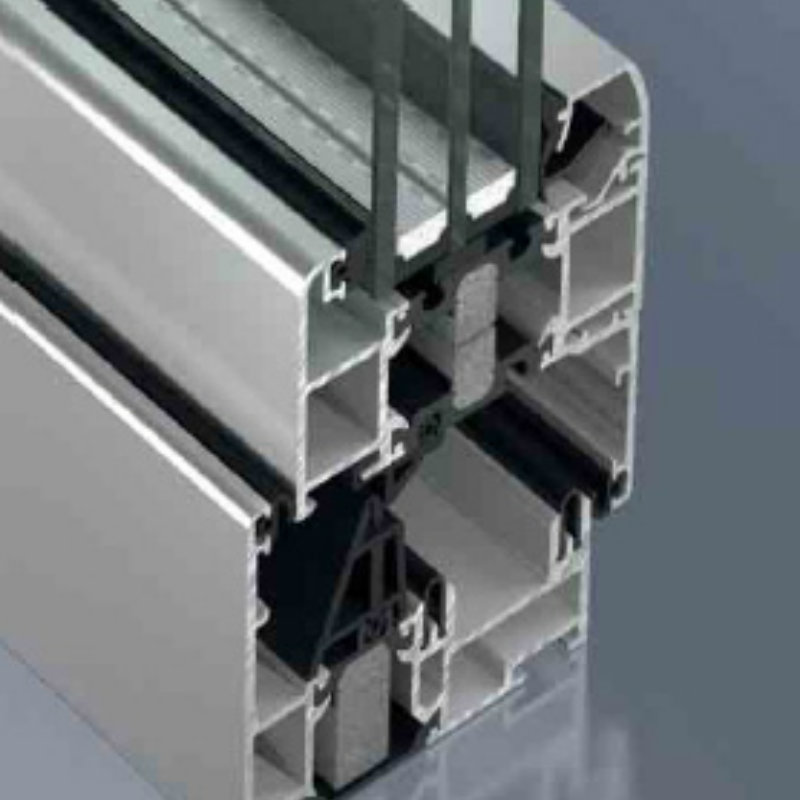

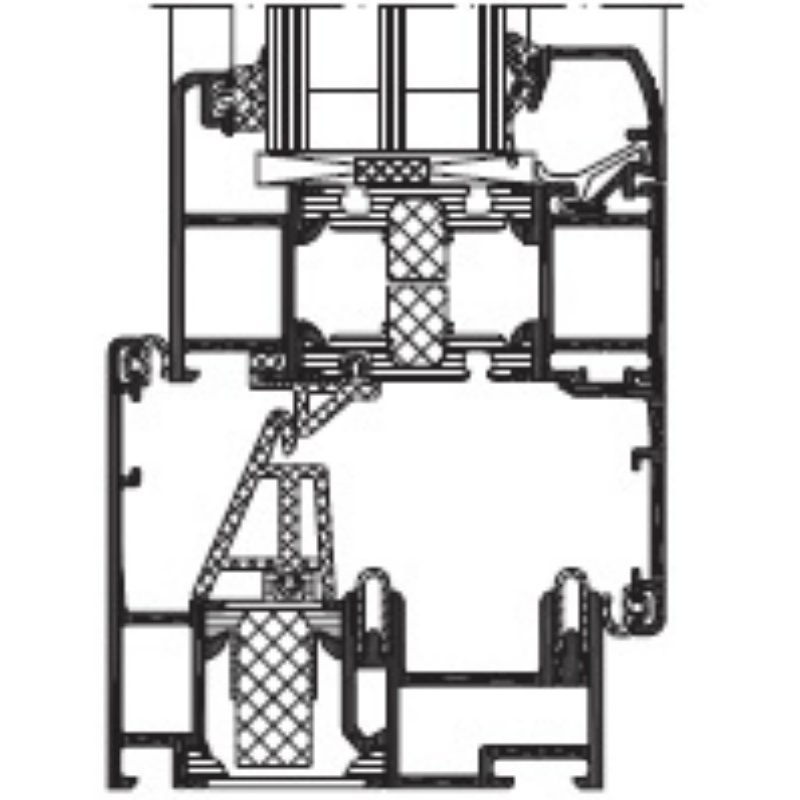

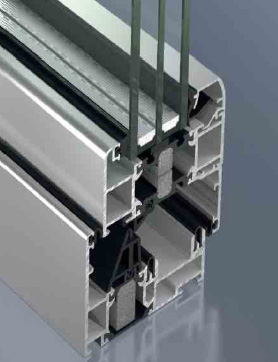

The outstanding Uf values are achieved as a result of extending the insulation zone, integrating a centre gasket in the outer frame and using glazing rebate insulation. Due to the gasket in the vent frame and an additional second sealing level in the insulating bar of the vent, the ASS 80 delivers outstanding weathertightness in a wide choice of styles.

All of our doors come with a standard glass specification of 4mm thick toughended outer, 20mm thick argon filled cavity and 4mm thick toughened inner with Low E coating, giving a ā€˜uā€™ value of 1.2 w/m2k.This specification allows the introduction of magnetic operated blinds within the cavity of the double glazed unit should you wish.Other glazing specifications are available if required ā€“ speak to one of our engineers for more details.

Sealed glass units incorporating integral blinds are the perfect glazing option for a wide range of situations where an unobtrusive blind is needed. Sunshade Blind Systems are ideal for use in conservatories and invaluable in commercial premises or any settings where low maintenance and hygiene are priorities. Choose from either a Venetian or Pleated blind totally enclosed inside the cavity of high performance insulating glass sealed units, making them dust, allergy, & maintenance free. With over 15 colours to choose from and delivered within 4 weeks from order, Sunshade Blind Systems offer all the benefits of blinds without any cleaning and maintenance chores.
