Reynaers Hi-Finity Sliding Door

Wall-to-wall and floor-to-ceiling glass with the Reynaers Hi-Finity slim frame doors

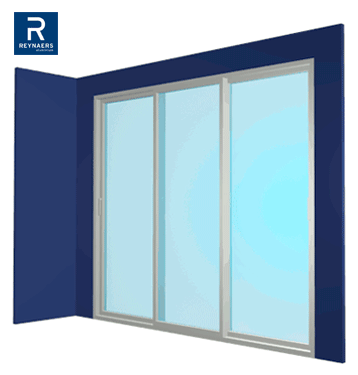

The Reynaers Hi-Finity sliding doors are a contemporary design statement that will define a room's style, equally at home in a modern grand design as in a more traditional property.

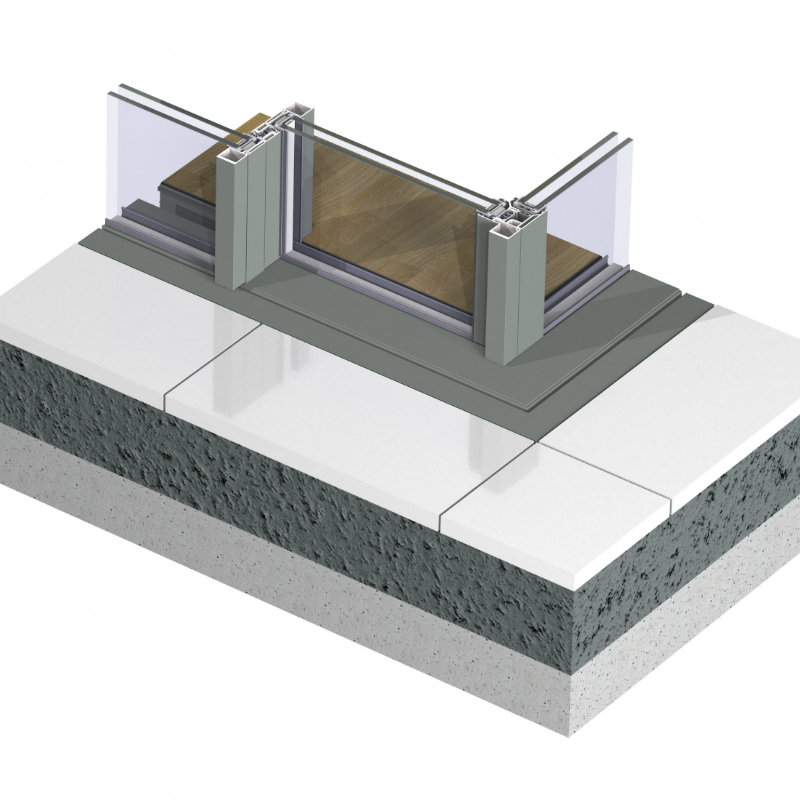

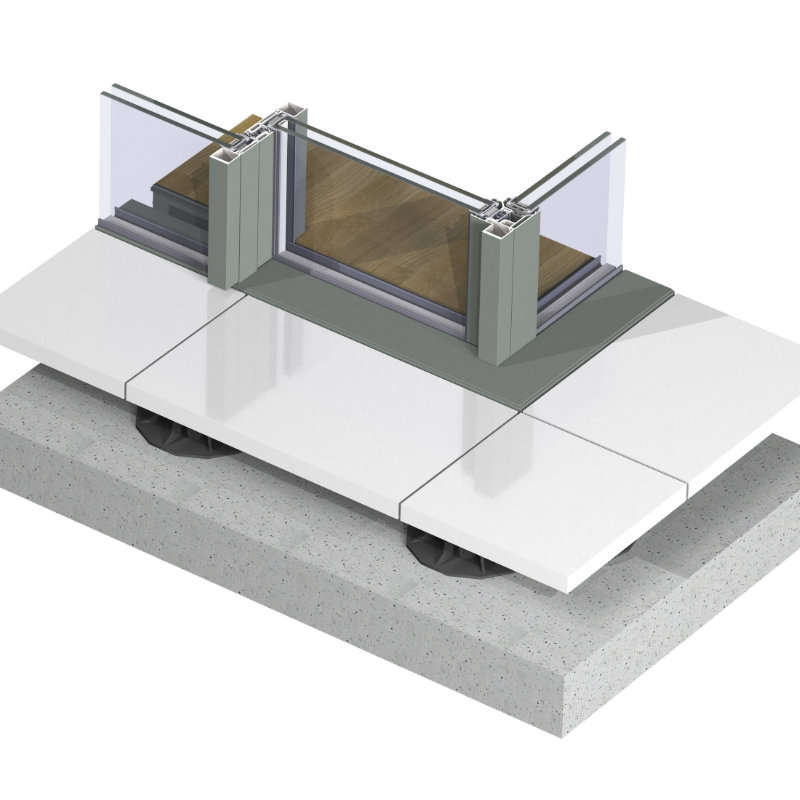

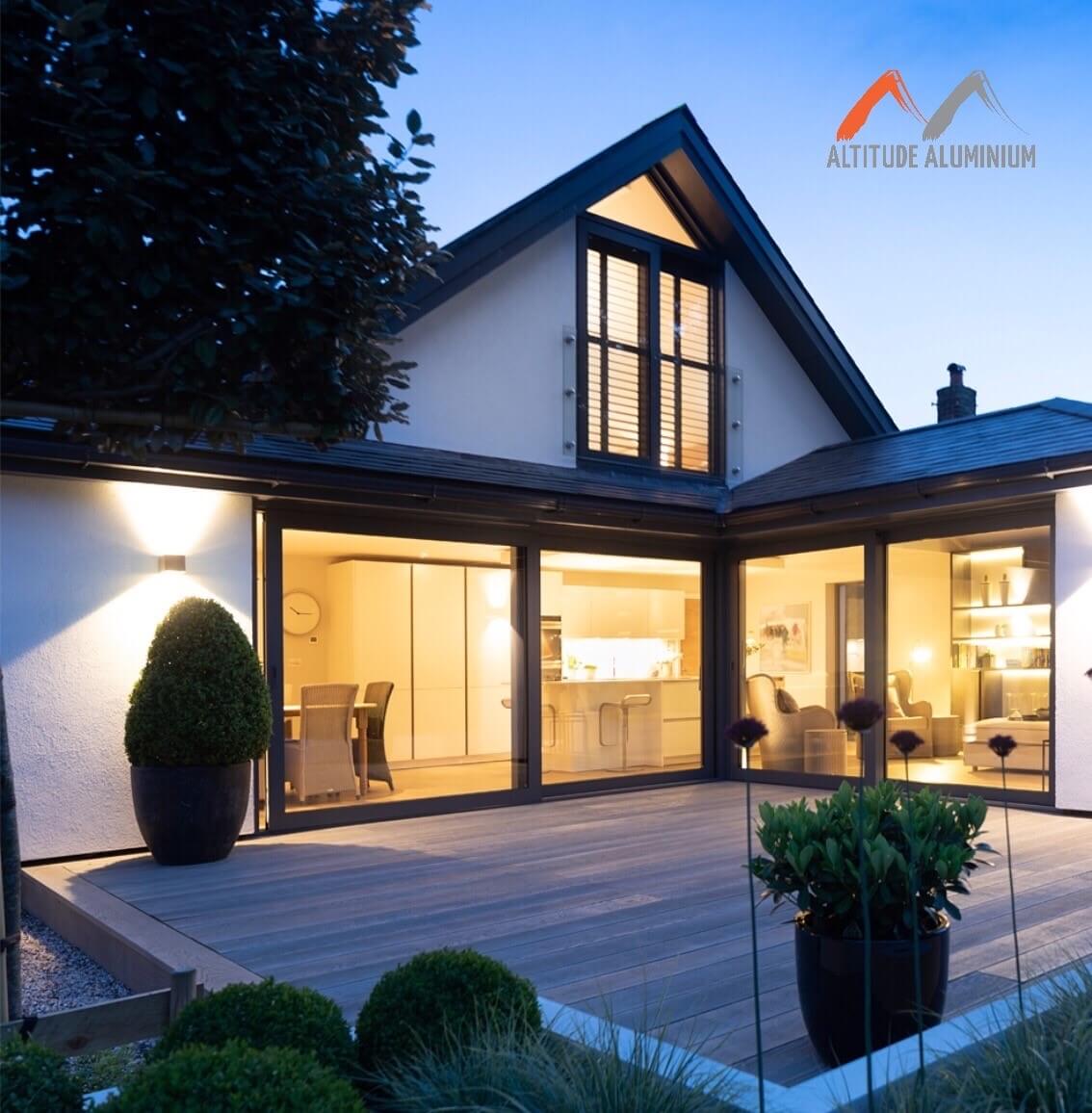

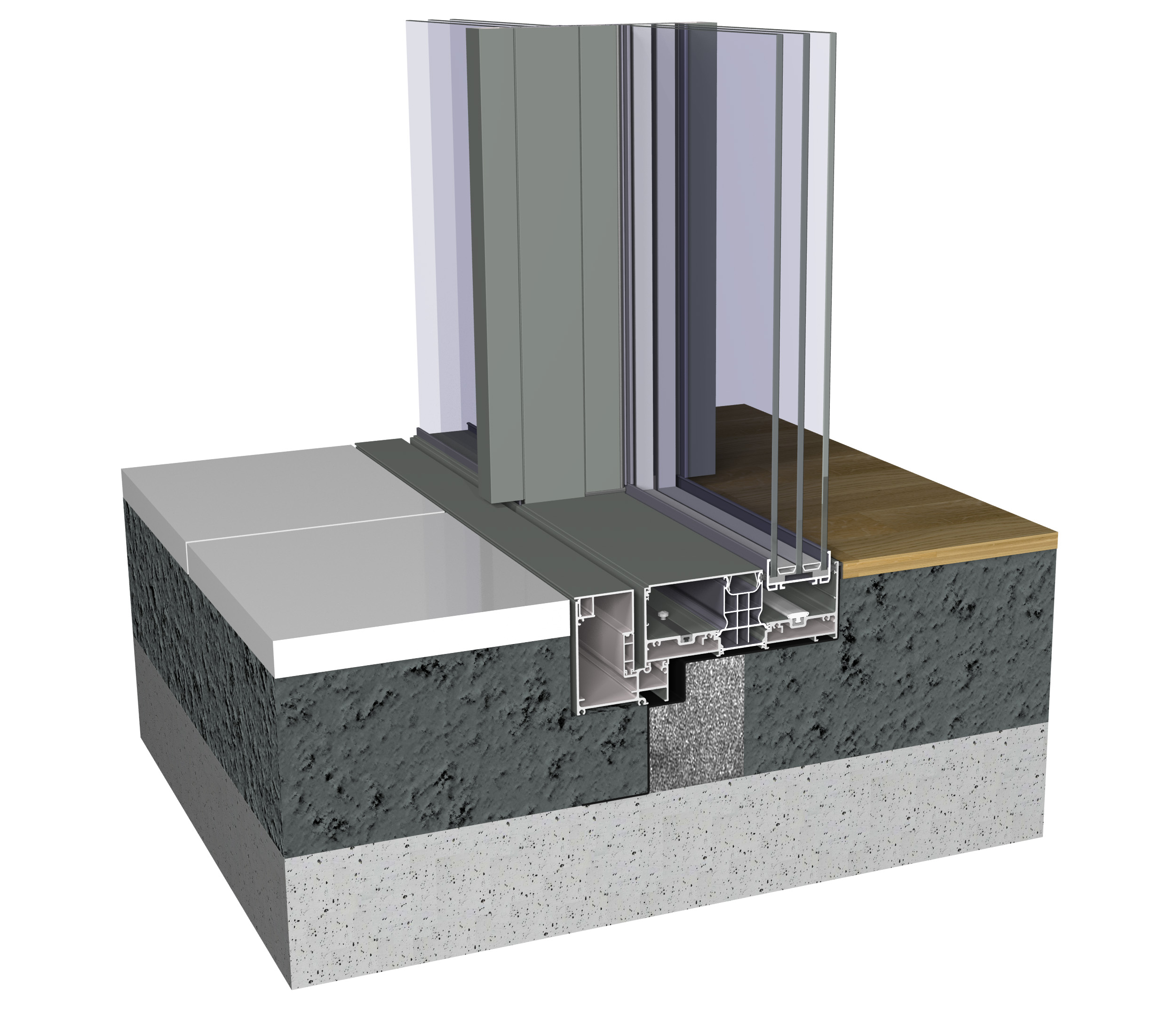

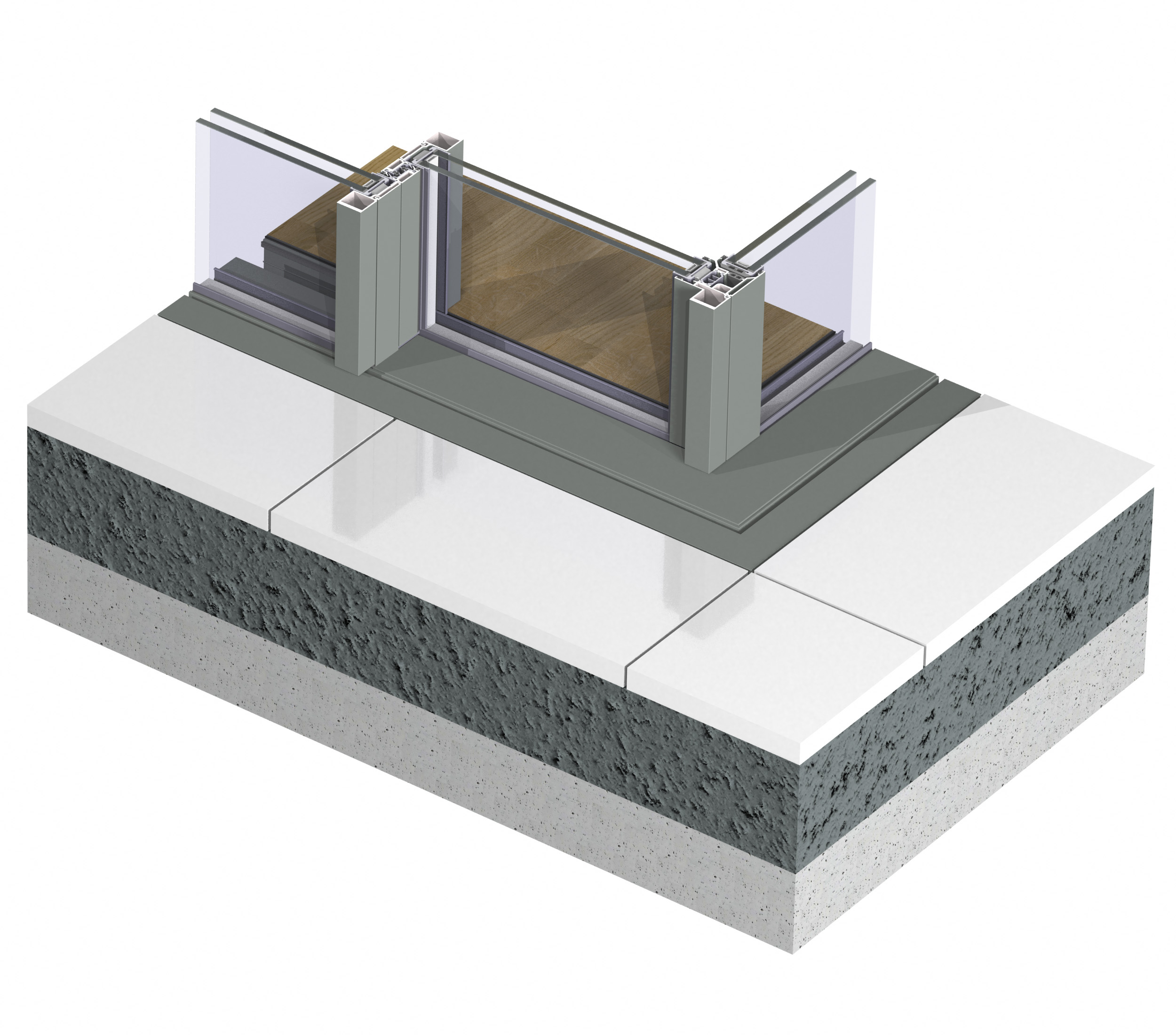

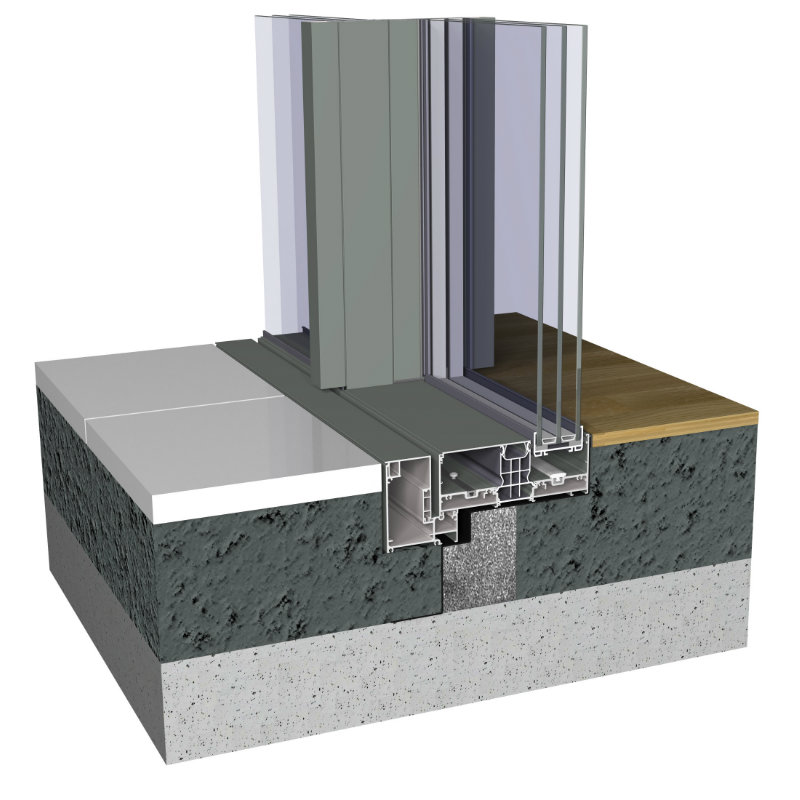

The Hi-Finity door is designed so that the outer frame can be concealed behind the surrounding wall, making wall-to-wall and floor-to-ceiling glass a real possibility. What is more, it is also possible to design two Reynaers Hi-Finity doors that sit perpendicular to each other on adjacent walls; they can either meet in the corner with two fixed panes of glass or you can have the two opening door leafs meeting at the corner without a fixed corner post. When both doors are open, the ceiling above appears to defy gravity, creating a really stunning architectural feature.

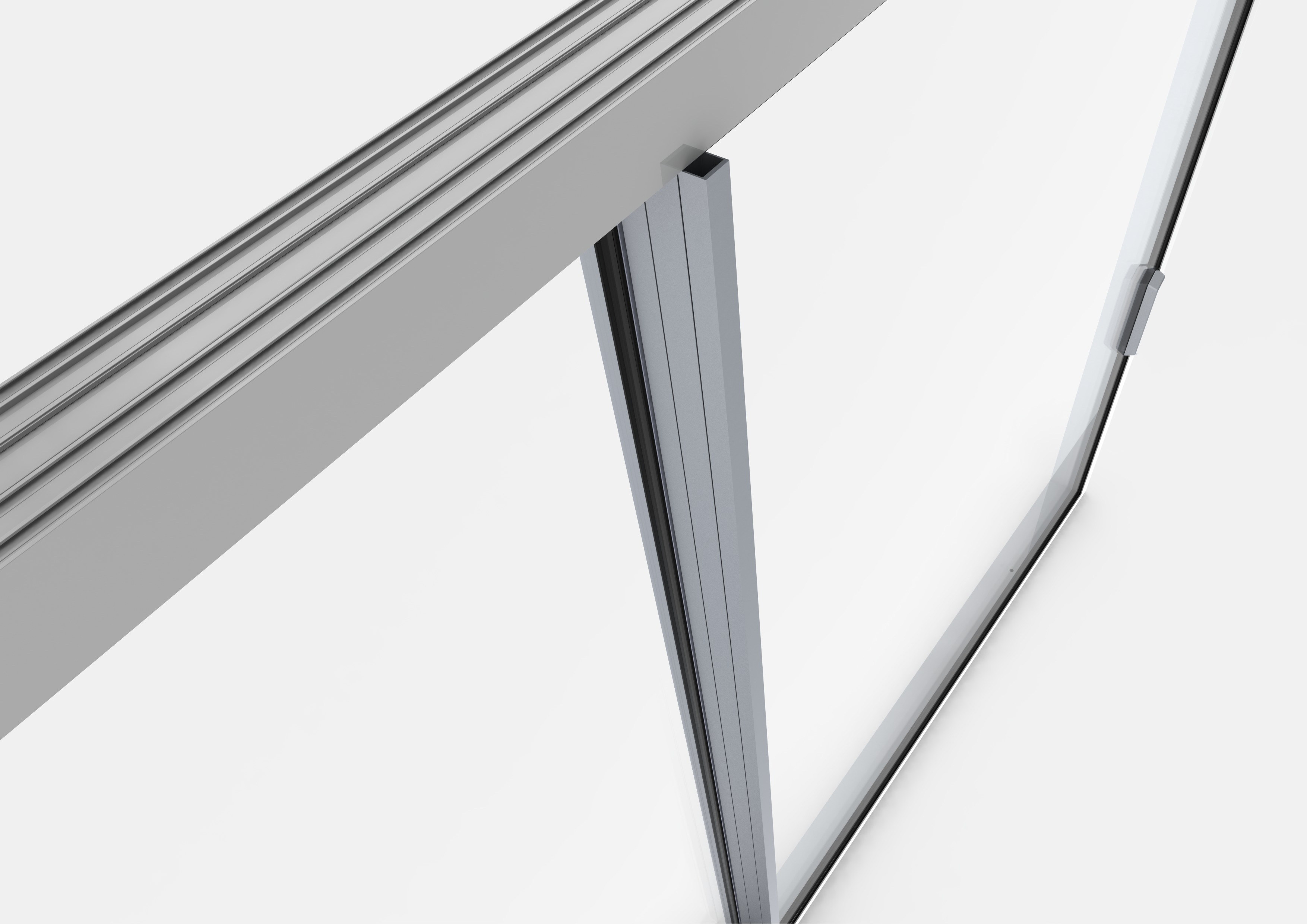

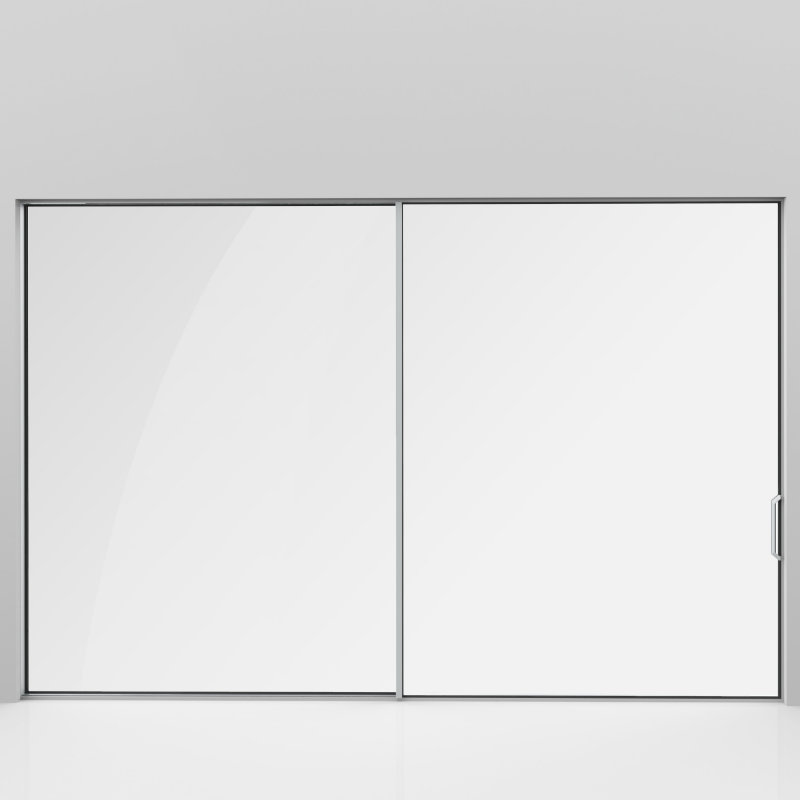

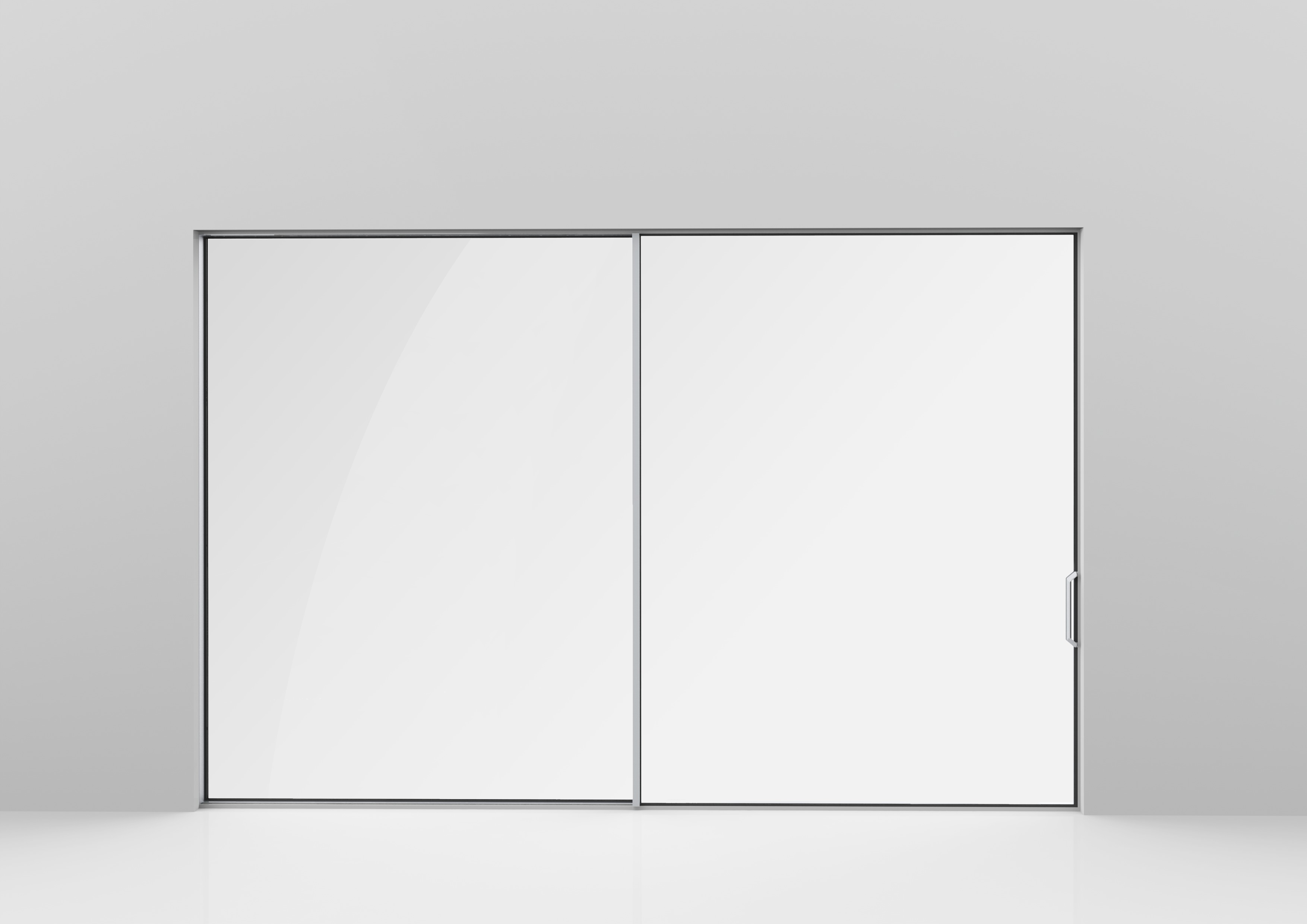

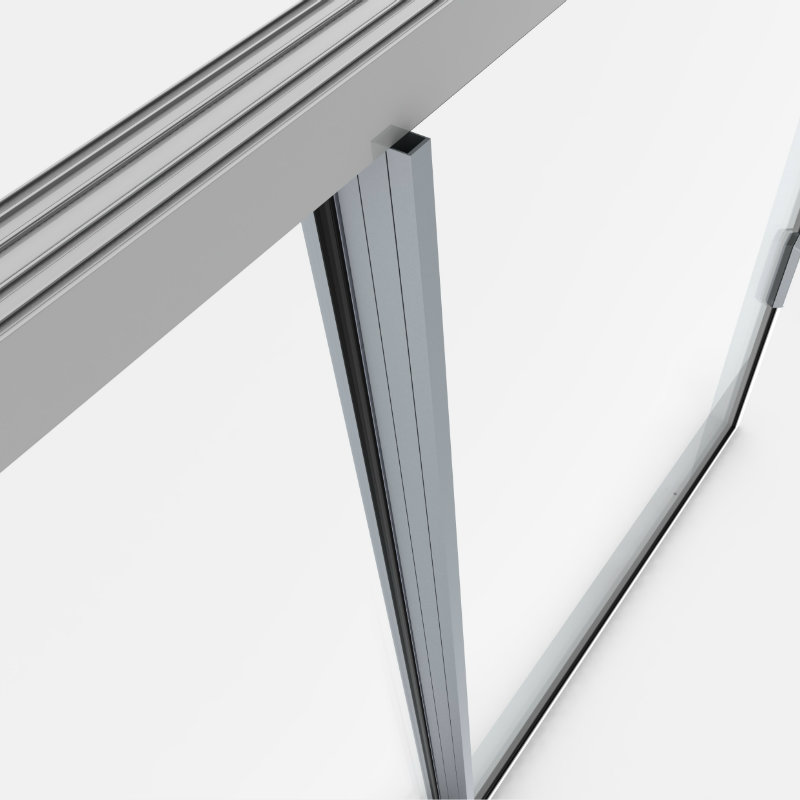

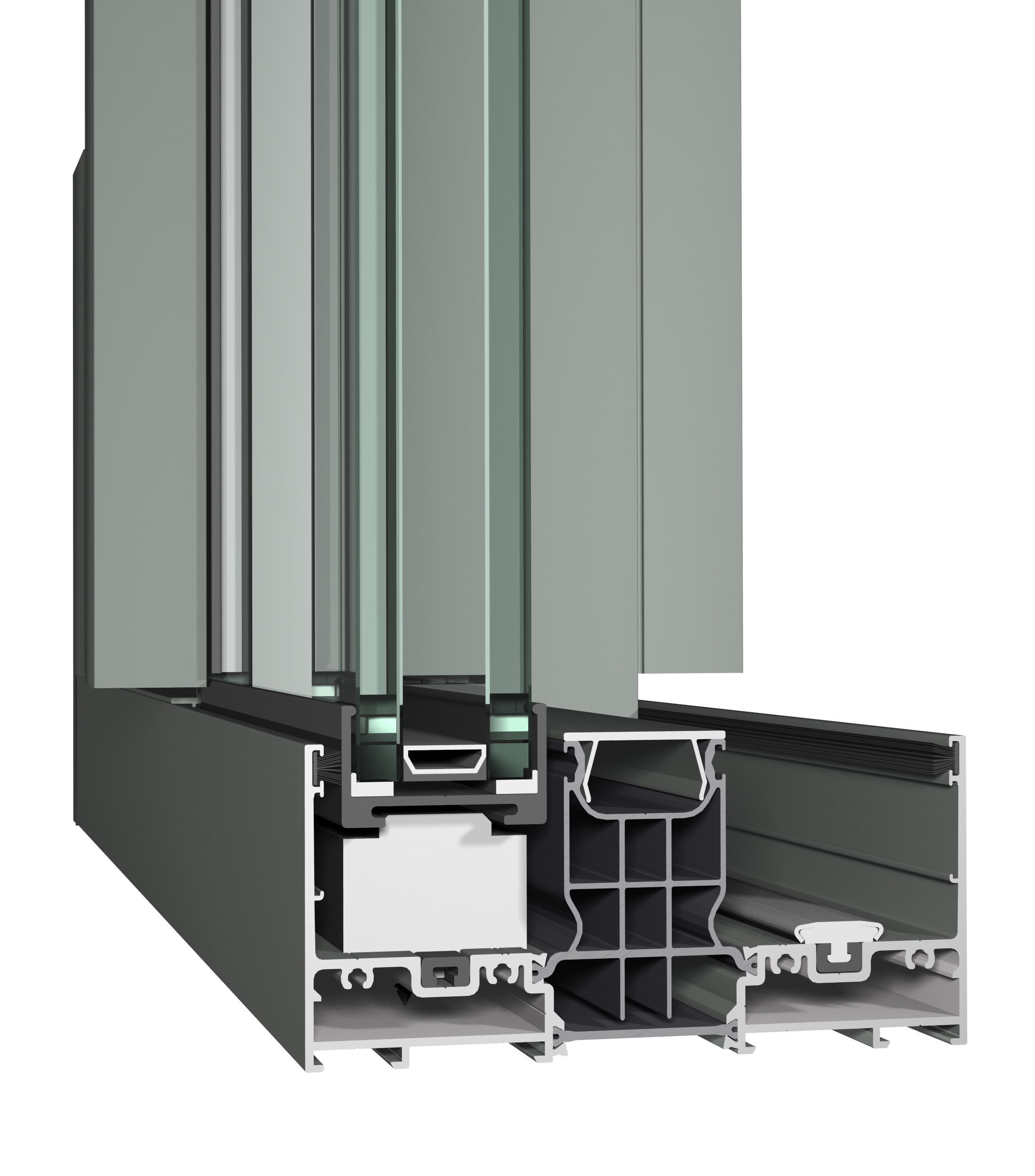

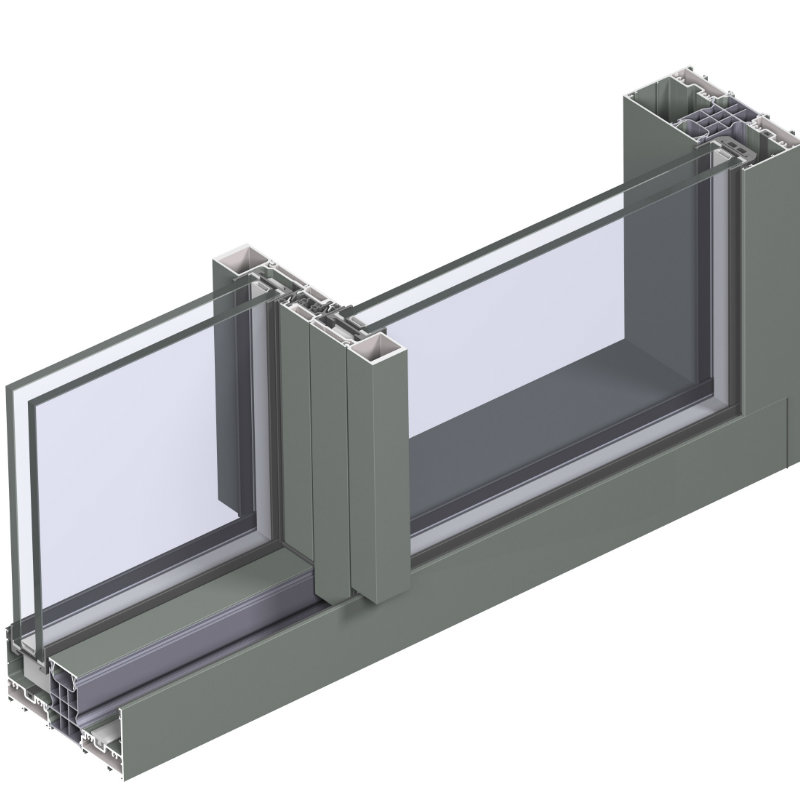

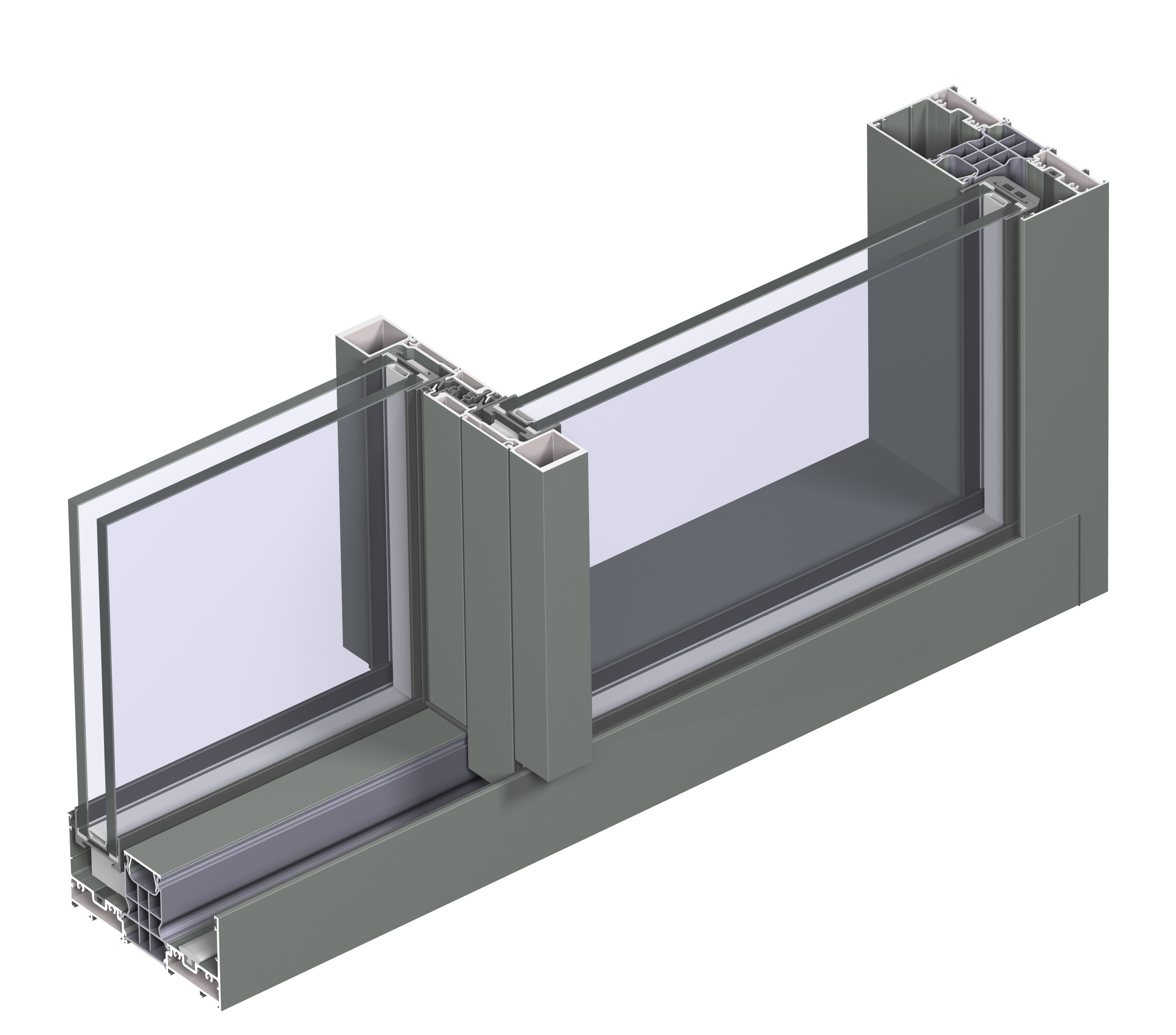

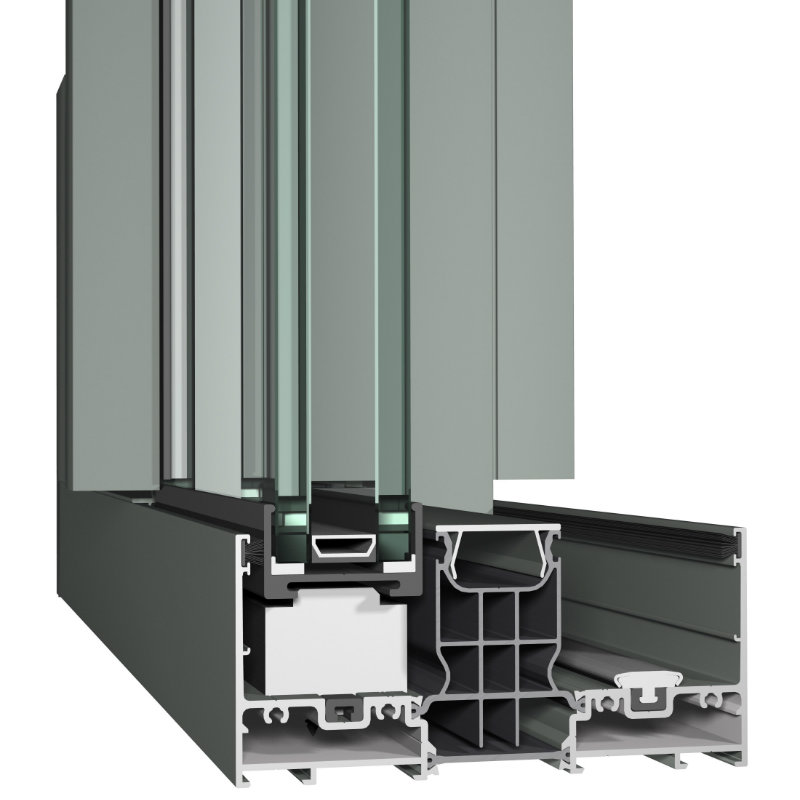

Reynaers Hi-Finity doors are structurally glazed, meaning the structure of the door is in the glass and not the surrounding framework. This makes it possible for the aluminium frame to be ultra-thin. What’s more, the outer frame is designed so that it can be concealed behind the wall. This revolutionary design means the only exposed part of the frame is a 35mm interlock between glass panels, meaning whole rooms can be flooded with light easily.

Reynaers Hi-Finity sliding doors are ideal for buildings that do not require more energy than they can produce themselves – so called zero energy buildings. They are also perfect for buildings constructed for ultra-low energy consumption. Industry-leading levels of insulation means Reynaers Hi-Finity sliding doors help retain heat generated from passive sources – such as natural light, human body warmth, and electrical appliances – enabling these items to contribute to the general warming of the home. In fact the Hi-Finity door is so good, it has been awarded the coveted Swiss Minergie accreditation for thermal efficiency.

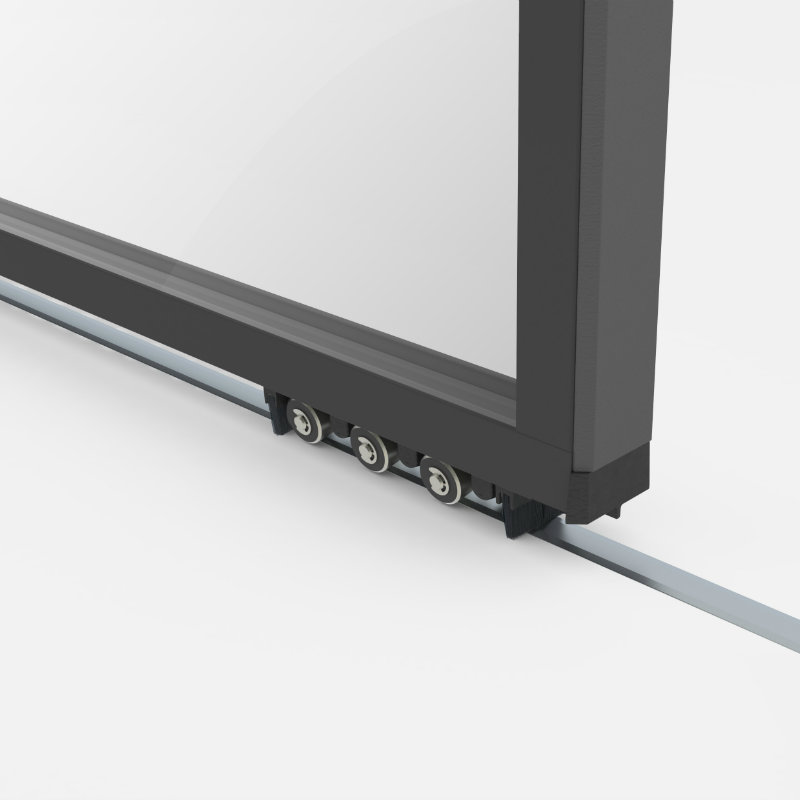

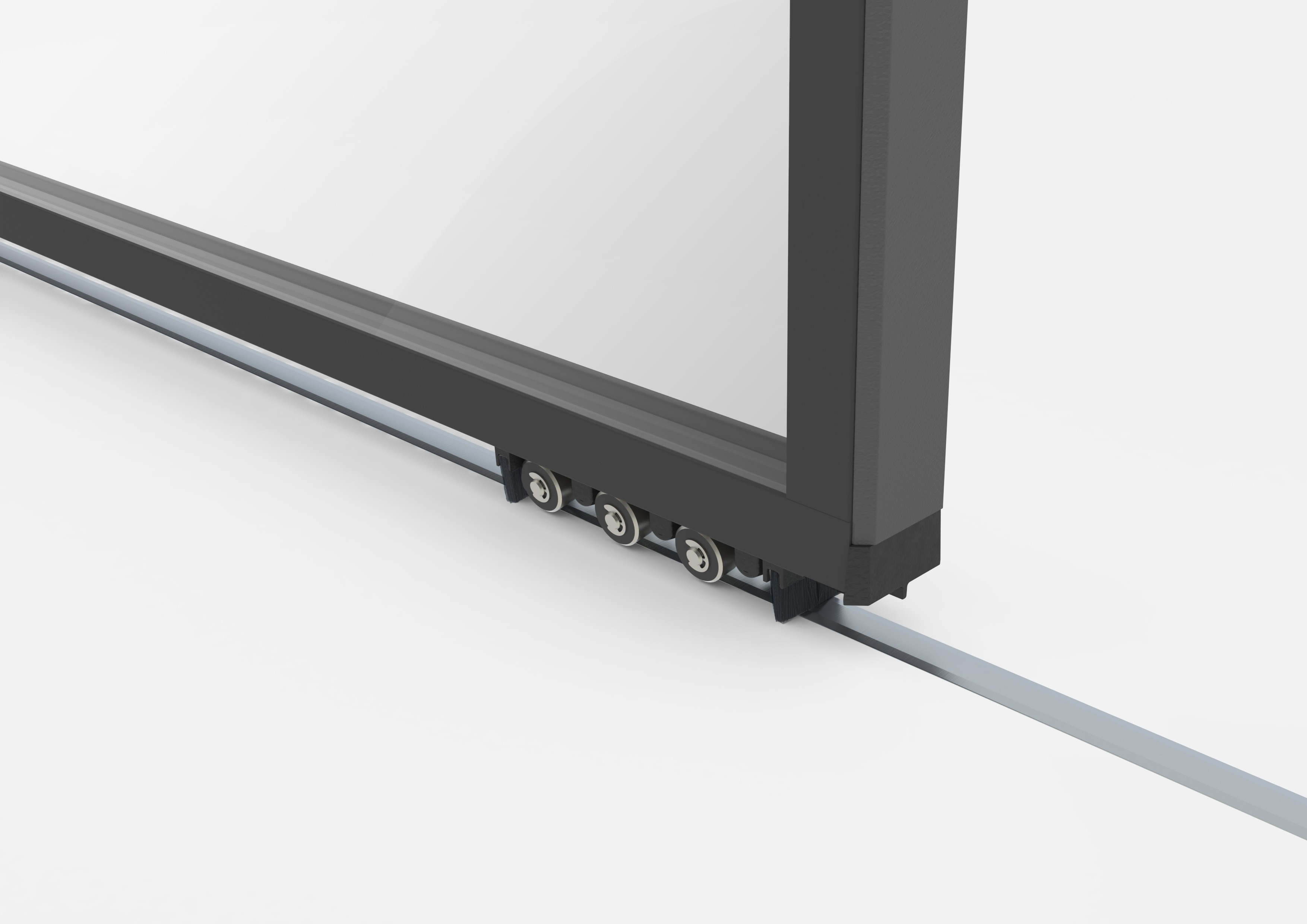

The design that makes it possible to move half a ton of glass smoothly, easily and safely is tribute to an exceptional level of engineering expertise. This elegant sliding door exemplifies attention to detail and some very clever design. The compact wheel carriages (patent pending), for example, are made using only the highest quality materials; the six stainless steel wheels being set at an angle to operate smoothly with even the heaviest of loads.

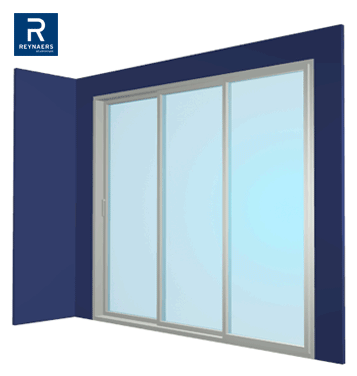

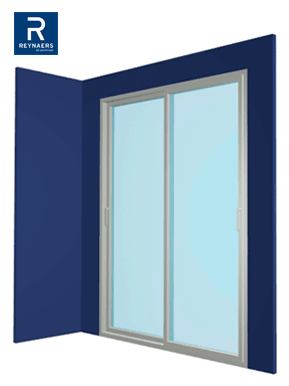

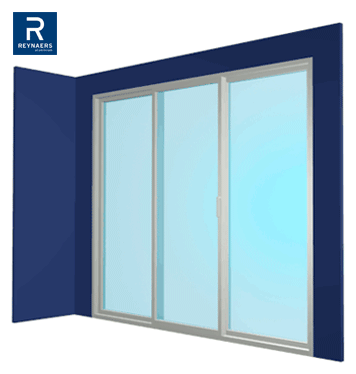

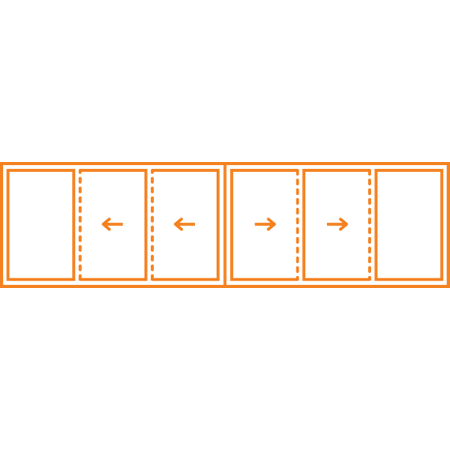

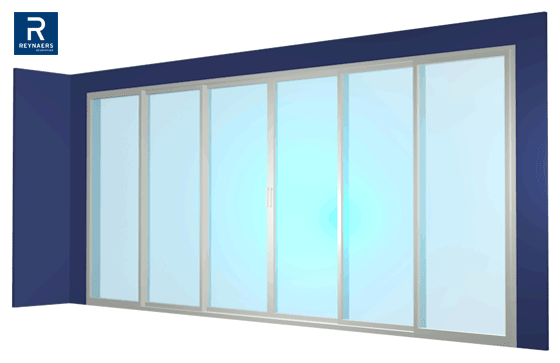

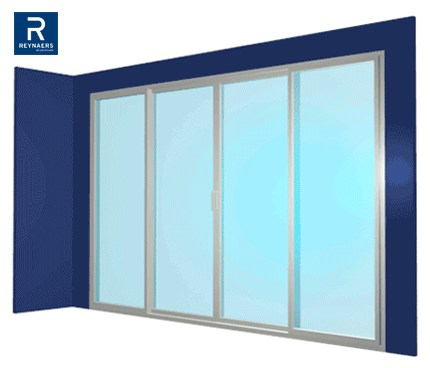

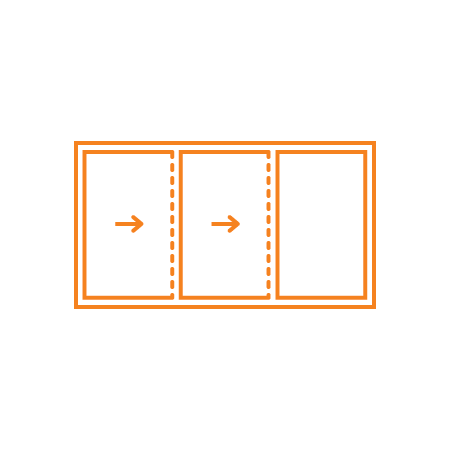

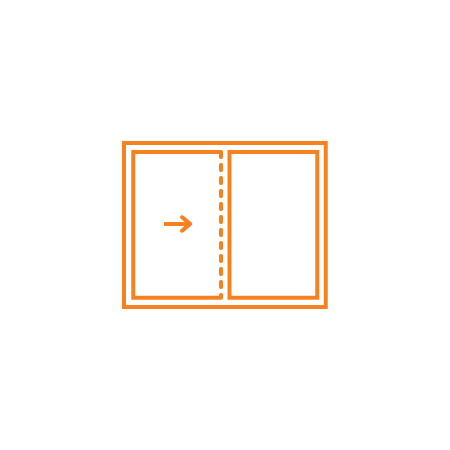

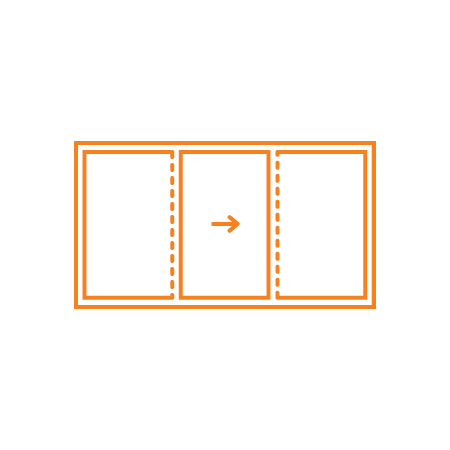

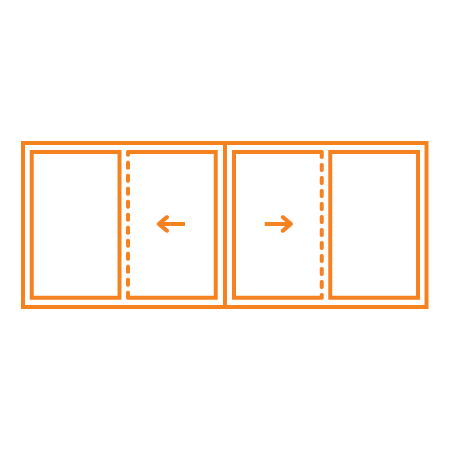

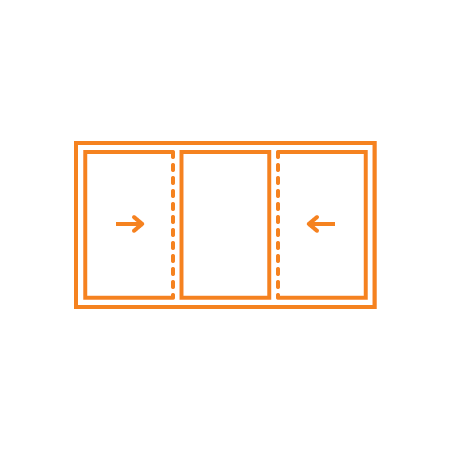

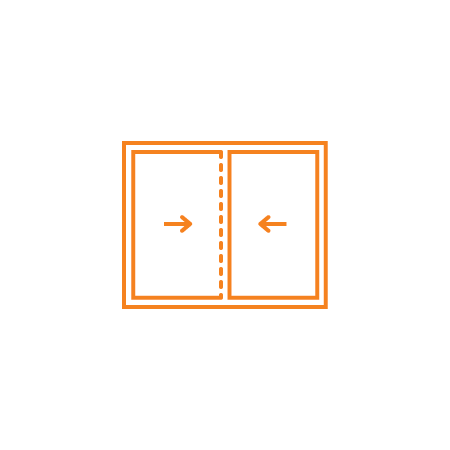

Opening varations

  • Lift and slide

  • Slide only

All of our doors come with a standard glass specification of 4mm thick toughended outer, 20mm thick argon filled cavity and 4mm thick toughened inner with Low E coating, giving a ā€˜uā€™ value of 1.2 w/m2k.This specification allows the introduction of magnetic operated blinds within the cavity of the double glazed unit should you wish.Other glazing specifications are available if required ā€“ speak to one of our engineers for more details.

Sealed glass units incorporating integral blinds are the perfect glazing option for a wide range of situations where an unobtrusive blind is needed. Our Blind Systems are ideal for use in conservatories and invaluable in commercial premises or any settings where low maintenance and hygiene are priorities. Choose from either a Venetian or Pleated blind totally enclosed inside the cavity of high performance insulating glass sealed units, making them dust, allergy, & maintenance free. With over 10 colours to choose from and delivered within 4 weeks from order, offering all the benefits of blinds without any cleaning and maintenance chores. Note size restrictions on Hi-Finity door Integrated blinds
