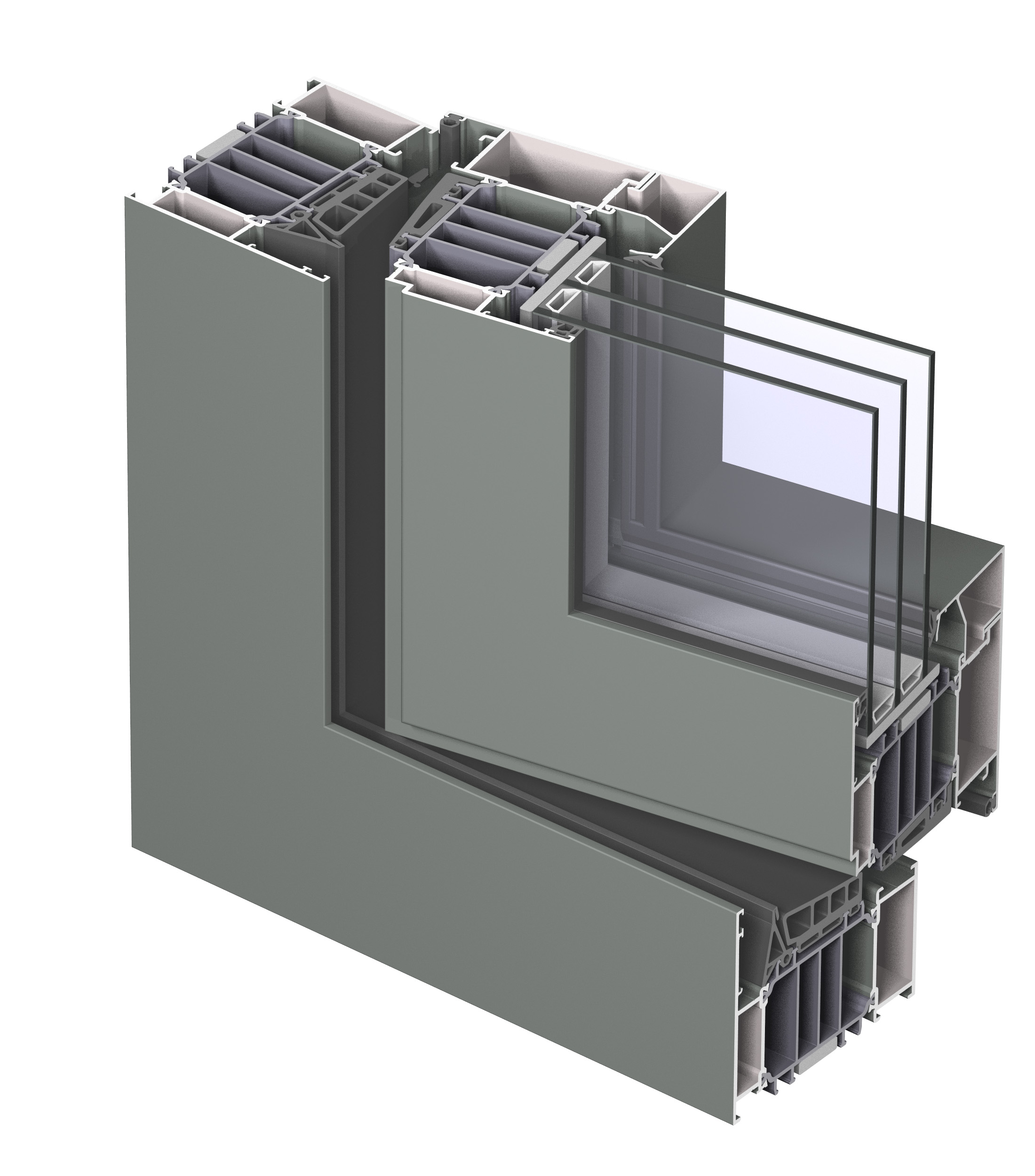

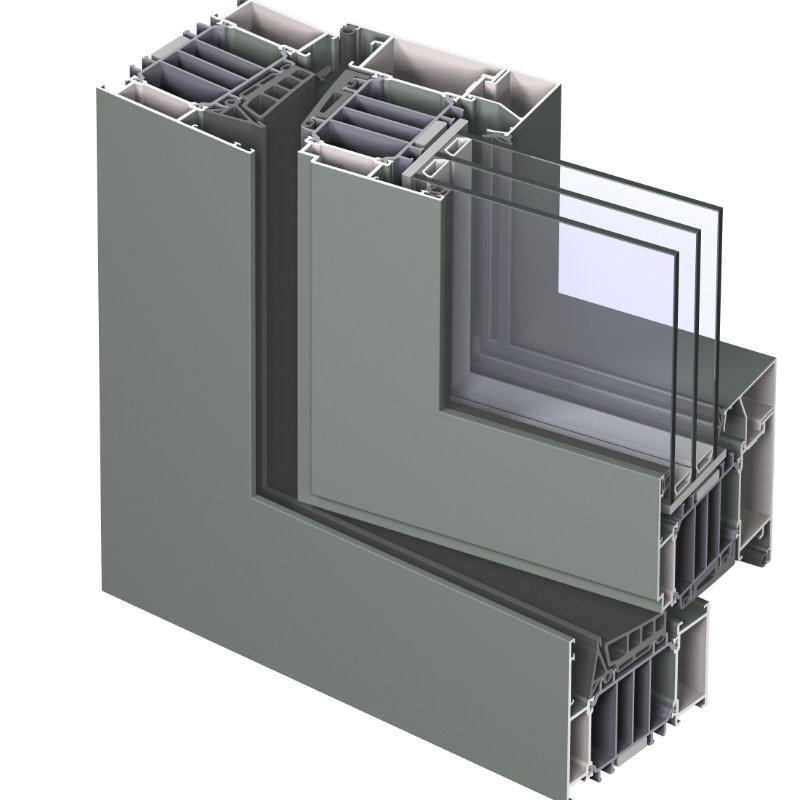

Reynaers CS104 Window

Reynaers CS104 Aluminium Windows offer unparalleled insulation values for aluminium profiles.

The CS104 is an elegent product with industry-leading thermal insulation that meets the requirements for Passive House standards, making it the perfect solution for any home where energy conservation and low U-values are important.

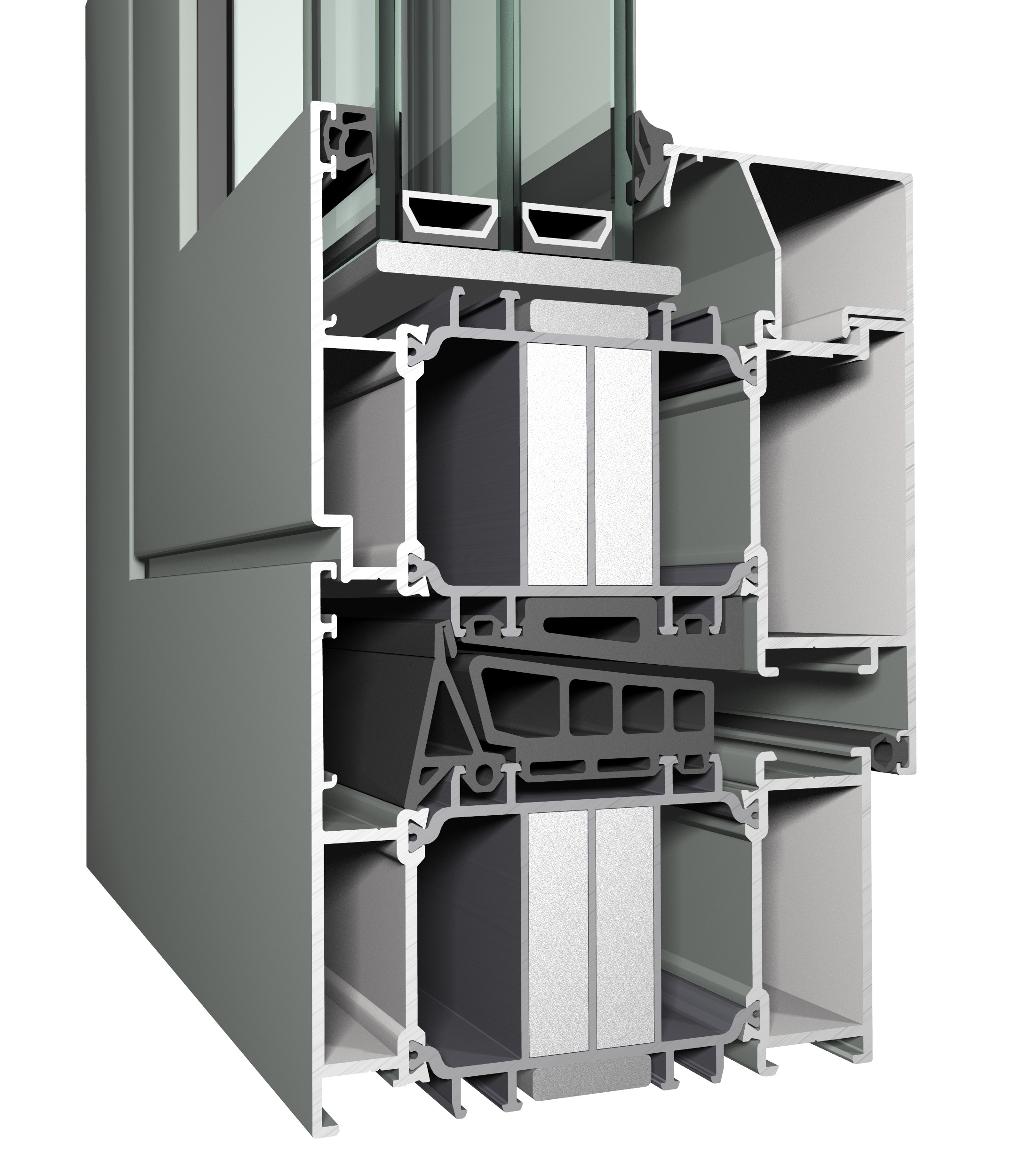

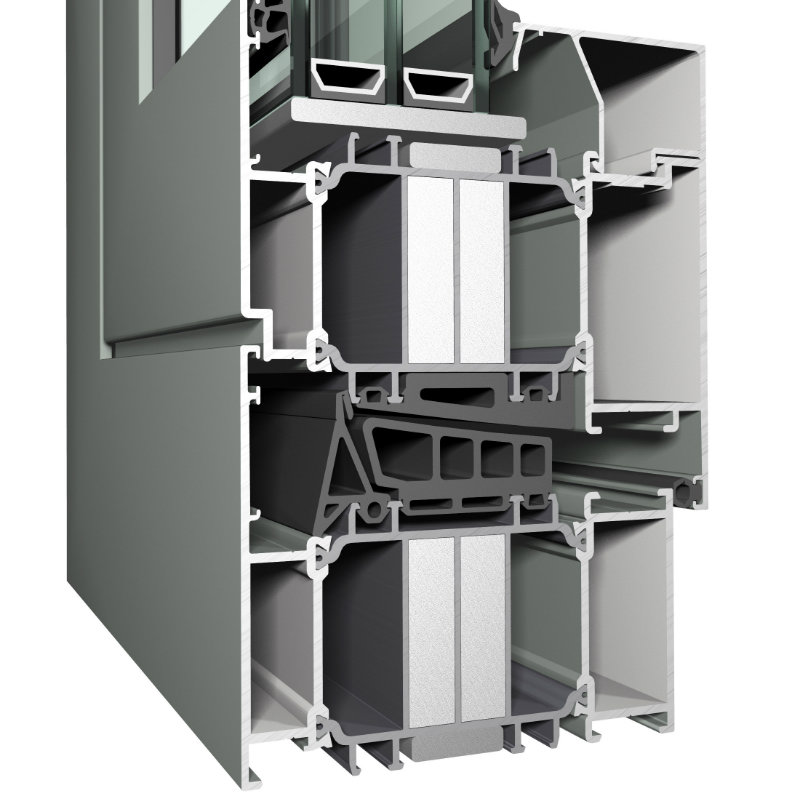

The high insulation levels, down to an Uf-value of 0.88 W/m²K, are achieved by the use of a patented insulation technology which contains a special foam, firmly fixed in the chamber of the insulation strip so that no extra manipulation is required when handling, processing and composing the window. A new set of specifically developed gaskets also assures the high level of the wind and water tightness of the system. After insulation, air tightness is the most important factor determining the energy efficiency of a window.

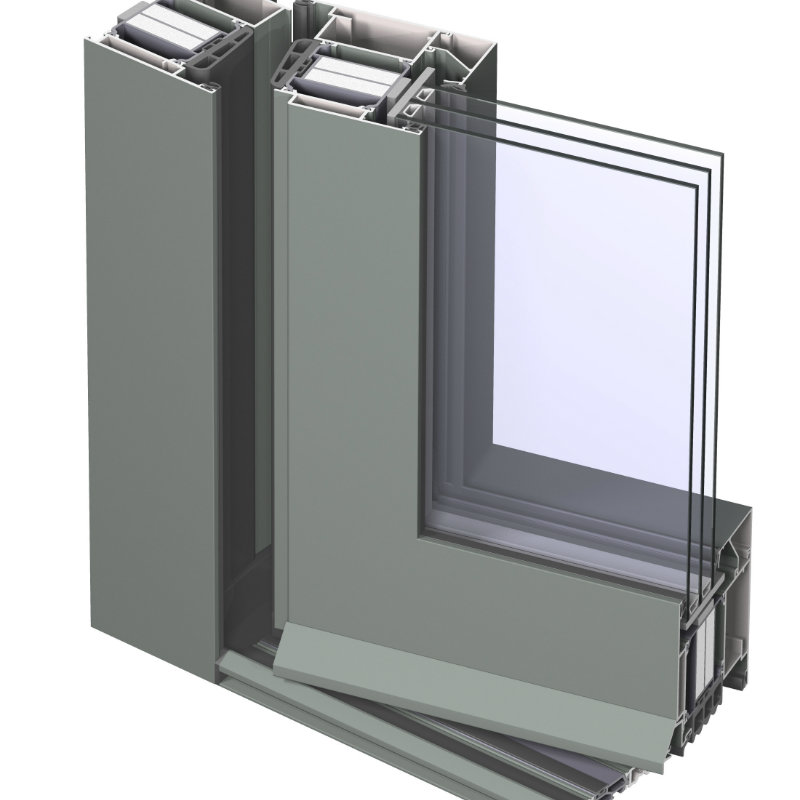

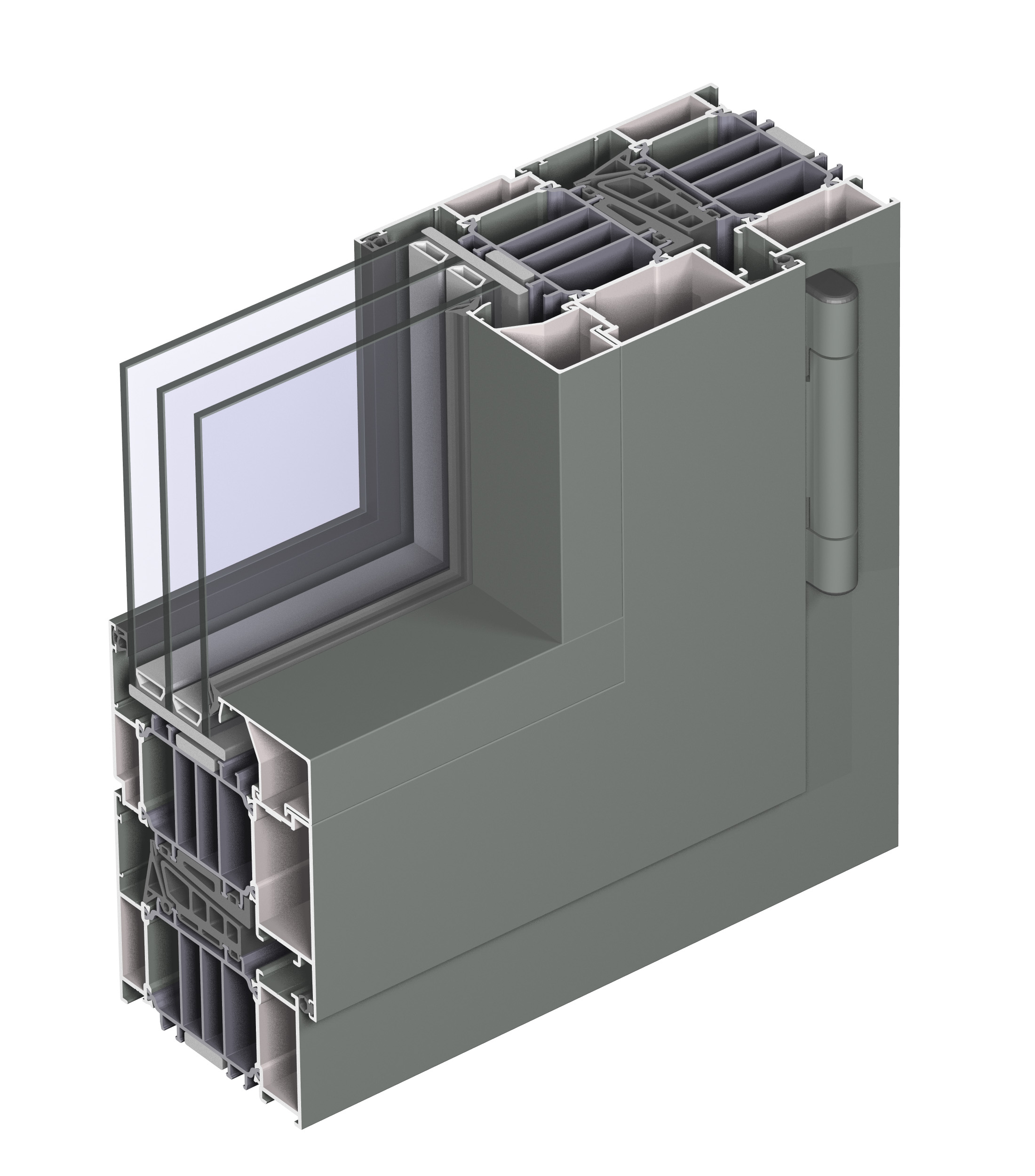

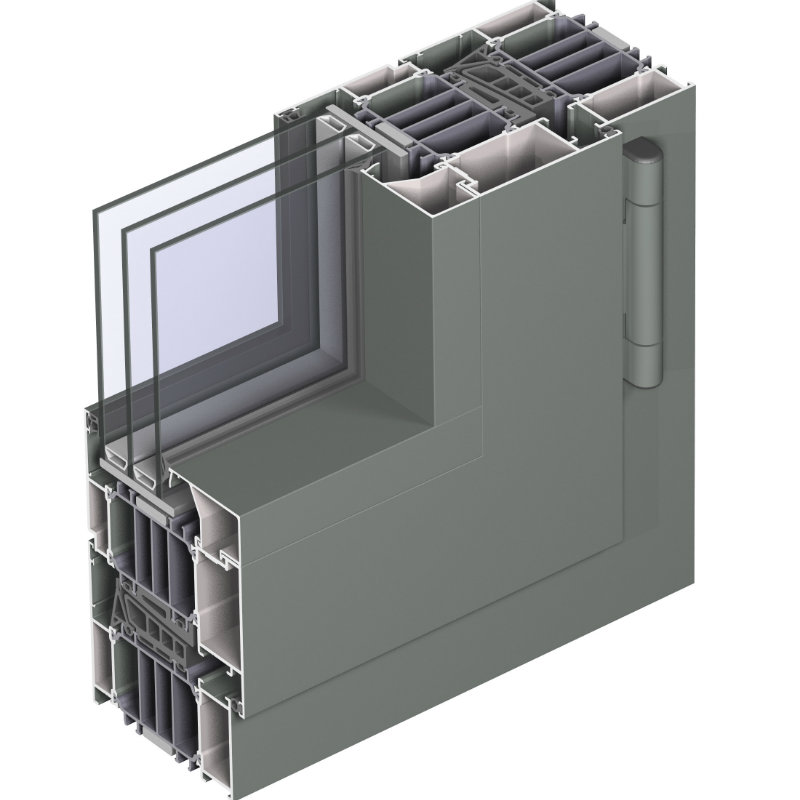

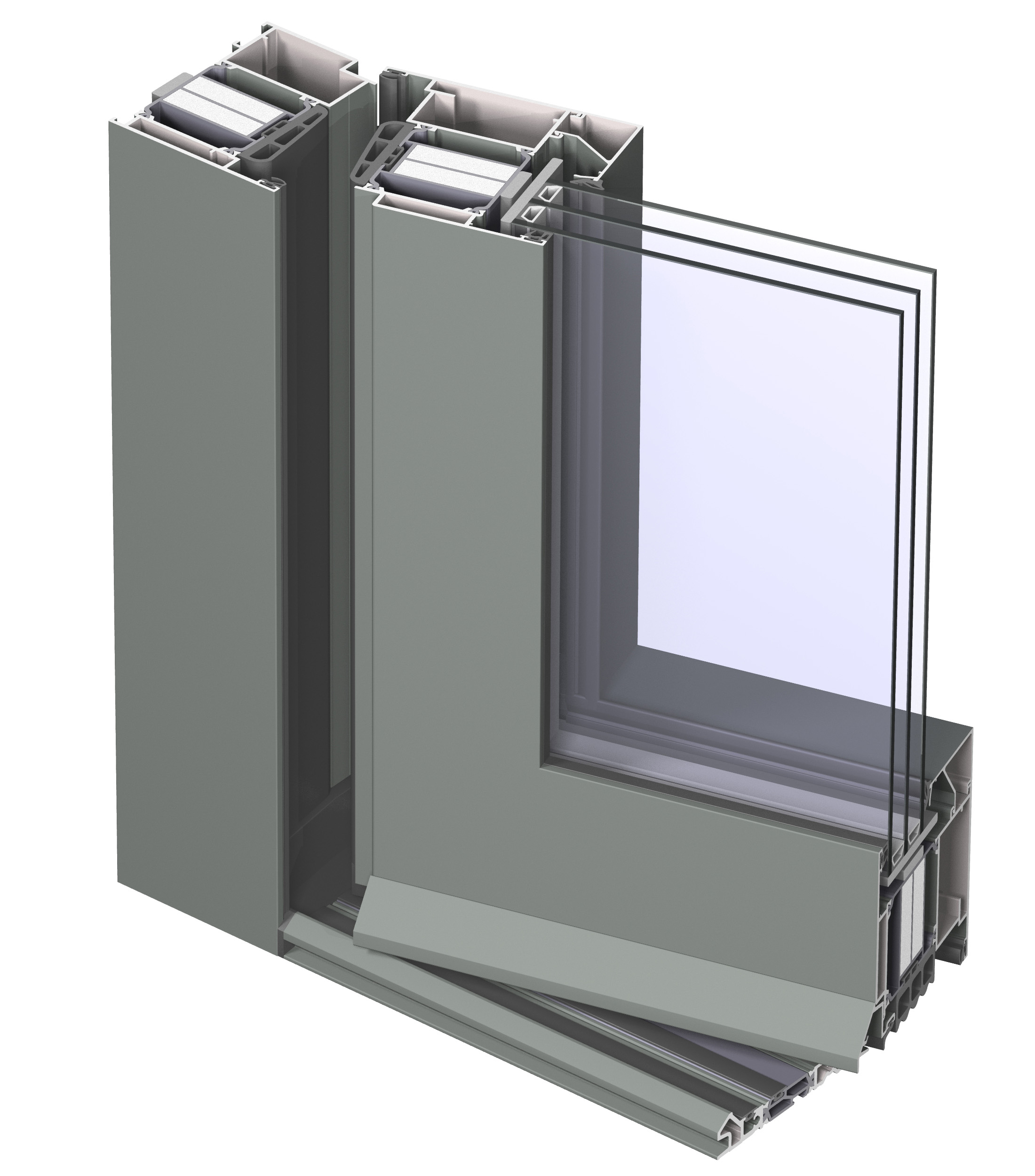

The CS104 also offers extremely high performance when it comes to water tightness, meaning it is a suitable system for extreme conditions such as coastal areas and can be applied at extreme heights. The increased built-in depth of the profiles (the vent is 104mm deep) contributes furthermore to their strength and stability, giving architects and builders the design benefits of large, expansive surfaces of triple glazing resulting in innovative, energy-efficient and yet sustainable solutions.

Opening varations

  • Lift and slide

  • Slide only

All of our windows come with a standard glass specification of 4mm thick toughened outer, 20mm thick argon filled cavity and 4mm thick toughened inner with Low E coating, giving a ā€˜uā€™ value of 1.2 w/m2k.This specification allows the introduction of magnetic operated blinds within the cavity of the double glazed unit should you wish. Other glazing specifications are available if required ā€“ speak to one of our engineers for more details.

Sealed glass units incorporating integral blinds are the perfect glazing option for a wide range of situations where an unobtrusive blind is needed. Our Blind Systems are ideal for use in conservatories and invaluable in commercial premises or any settings where low maintenance and hygiene are priorities. Choose from either a Venetian or Pleated blind totally enclosed inside the cavity of high performance insulating glass sealed units, making them dust, allergy, & maintenance free. With over 10 colours to choose from and delivered within 4 weeks from order, offering all the benefits of blinds without any cleaning and maintenance chores.
